Data Visualization

Why Trends Beat Static Displays for Operational Data

A static dashboard tells you what's happening right now. A trend tells you why. When a batch runs off-spec or a unit trips, the answer is almost never in a single snapshot — it's in the pattern leading up to it. Capstone Technology Canada builds trend-first data visualization systems because trends are how process engineers actually diagnose problems: by comparing what happened against what normally happens, overlaying variables that don't obviously relate, and zooming into the exact minute things went wrong.

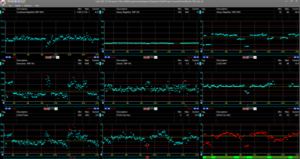

We implement and support PARCview, the trending and visualization platform from DataParc, now in its 7.x release line. Unlike static HMI screens or fixed reports, PARCview trends are built for exploration — drag, zoom, overlay, and interrogate the data in real time instead of waiting on a report to tell you what already happened.

Key Features We Implement

Run Browser — Rather than manually hunting through weeks of history to find a comparable batch or grade run, Run Browser automatically identifies when a specific product or batch was produced and loads those time windows directly into a trend. Runs can be filtered by date, product, or duration, then compared side-by-side or overlaid to isolate exactly where a batch deviated from a "golden run." This turns a multi-hour manual investigation into a few clicks.

Ad Hoc Calculations Built Directly Into Trends — Engineers rarely know in advance exactly what calculation they'll need — that's the nature of troubleshooting. PARCview lets users build formulas and calculated tags on the fly, directly inside the trend display, without submitting a request to IT or waiting on a historian configuration change. See a relationship worth quantifying? Build it, plot it, and keep investigating in the same window.

Modern Web & Mobile Access via Nexus — PARCview's mobile capability has evolved from the legacy PARCmobile into Nexus, a browser-based client that gives operators, engineers, and management the same trends, graphics, and dashboards on desktop, tablet, or phone — no separate app, no retraining. Bookmark critical views, build a trend on the fly during a plant walk, and pick up the same investigation later from a different device.

Batch & Grade Comparison — Compare runs by percent-complete rather than clock time, so a 6-hour batch and an 8-hour batch line up phase-for-phase instead of by mismatched timestamps. This makes it possible to spot exactly which phase of the batch is driving variability, not just that variability exists somewhere.

Replacing PI Process Book — Without Losing Your Existing Graphics

With PI Process Book retired, plants that built years of critical graphics and displays in that platform are facing a forced migration. Rebuilding those displays from scratch is a real cost — in engineering time and in operational risk while the transition happens.

Capstone Technology Canada uses DataParc's built-in conversion tooling to migrate existing Process Book graphics directly into PARCGraphics, preserving the display logic your team already relies on instead of starting over. We manage the migration end-to-end: assessing your existing Process Book library, running the conversion, and validating that migrated graphics behave correctly against your live data before cutover.

Why This Matters for Your Plant

Whether you're troubleshooting a quality excursion, benchmarking batch performance, or simply replacing an end-of-life visualization platform, the goal is the same: get your team looking at the data in a way that surfaces the answer, not just the symptom. Capstone Technology Canada has implemented PARCview and Nexus across oil & gas, refining, pulp & paper, and mining operations, and we manage the full path from legacy Process Book displays to a modern, trend-driven system.

Talk to a data visualization engineer
